\documentclass[a4paper,12pt]{article}
% ================================================================================
% Parameters
% ================================================================================
% Number of tabs at the bottom of the page
\newcommand{\numTabs}{12}
% Page Width (A4 = 21cm)
\newcommand{\pageWidth}{21}
% Margins in cm (Left and Right)
\newcommand{\marginLeft}{2}
\newcommand{\marginRight}{2}
% Bottom margin in cm (It matches the height of the tabs)
\newcommand{\marginBottom}{2.5}
% Vertical distance from the bottom of the tabs in cm
\newcommand{\tabTextYOffset}{0.1}
% Radius of the box corners in mm
\newcommand{\boxarc}{6}
% Width of the box corners in pt
\newcommand{\boxlinewidth}{3}
% Main text of the Announce
\newcommand{\mainTitle}{Main Title}
\newcommand{\mainDesc}{Main description}
\newcommand{\mainDetails}{Main details}
\newcommand{\mainContact}{Call: \underline{Phone number}}
% Text on tabs
\newcommand{\tabText}{Contact: Phone number}
% ================================================================================
% End Parameters
% ================================================================================
\usepackage[margin=\marginLeft cm, right=\marginRight cm, left=\marginLeft cm, bottom=\marginBottom cm]{geometry}
\usepackage{tikz}
\usepackage{lmodern}
\usepackage{rotating}
\usepackage[most]{tcolorbox}
\pagestyle{empty}
\begin{document}
\begin{center}
\begin{tcolorbox}[
colframe=black,
colback=white,
arc=\boxarc mm,
boxrule=\boxlinewidth pt,
width=0.93\textwidth,
left=8mm, right=8mm,
top=6mm, bottom=6mm,
enhanced,
]
\begin{center}
\Huge\bfseries
\mainTitle
\vspace{0.5cm}
\large
\mainDesc
\vspace{0.6cm}
%\normalsize
\mainDetails
\end{center}
\vspace{1cm}
\begin{center}
\textbf{\mainContact}
\end{center}
\end{tcolorbox}
\end{center}
\vfill
% Tabs at bottom
\noindent
\begin{tikzpicture}[remember picture, overlay]
% Page width
\pgfmathsetmacro{\usablewidth}{\pageWidth-\marginLeft-\marginRight}
% Height tabs
\pgfmathsetmacro{\tabheight}{\marginBottom}
% Y of line (at \marginBottom from bottom)
\pgfmathsetmacro{\lineY}{\marginBottom}
% Cicle for tabs
\foreach \i in {0,...,\numexpr\numTabs-1} {
\pgfmathsetmacro{\xstart}{\i*(\usablewidth/\numTabs)}
\pgfmathsetmacro{\xcenter}{\xstart+0.5*(\usablewidth/\numTabs)}
% Vertical dashed line
\draw[dashed] ({\xstart},{\lineY}) -- ({\xstart},-2);
% Rotated text centered in each tab, with a parametric offset from the bottom
\node[rotate=90, anchor=south, font=\small]
at ({\xcenter},{\tabTextYOffset})
{\tabText};
}
% Dashed line to the right of the first tab to close it
\draw[dashed] ({\usablewidth},{\lineY}) -- ({\usablewidth},-2);
% Horizontal dividing line
\draw[thick] (0,{\lineY}) -- ({\usablewidth},{\lineY});
\end{tikzpicture}
\end{document}

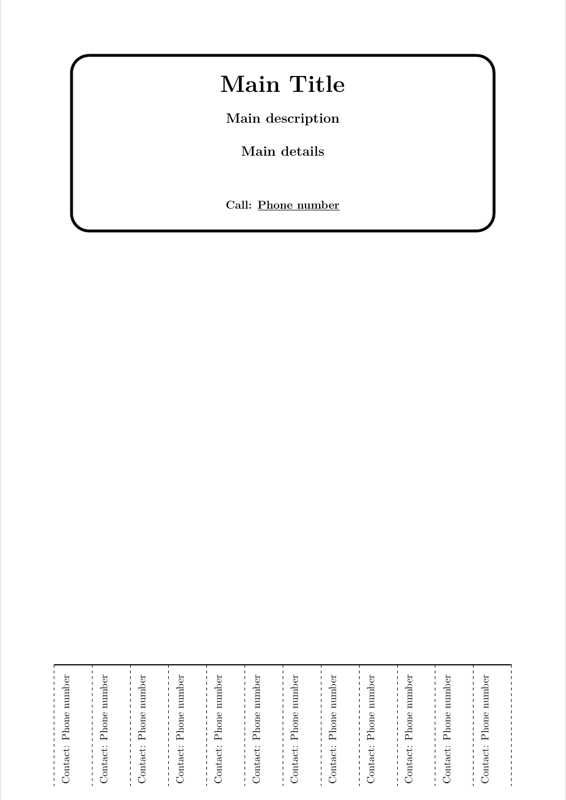

PDF Preview
