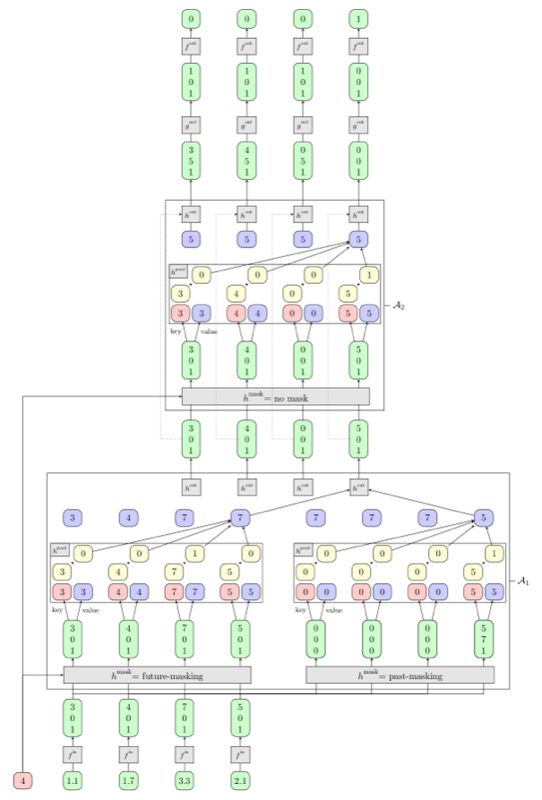

Transformer Verif

\documentclass[tikz, border=10pt]{standalone}
\usepackage{xstring}
\usepackage{amsmath}
\usepackage{datatool}
\usepackage{filecontents}
\usepackage{tikz}
\usetikzlibrary{positioning}
\usetikzlibrary{arrows.meta}
\usetikzlibrary{calc}
\usetikzlibrary{fit}
\usetikzlibrary{decorations.pathreplacing}


% Boolean to show dots when dealing with a general architecture
\newbool{showdots}
\setbool{showdots}{false}


% Boolean to draw boxes around attention heads
\newbool{showlayers}
\setbool{showlayers}{false}


\begin{document}
\include{commands.tex}


\newcommand{\Nin}{$\mathcal{N}_{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{in}}}}$}
\newcommand{\fin}{$f^{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{in}}}}$}
\newcommand{\gout}{$g^{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{out}}}}$}
\newcommand{\hout}{$h^{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{out}}}}$}
\newcommand{\hmask}{$h^{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{mask}}}}$}
\newcommand{\hatt}{$h^{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{att}}}}$}
\newcommand{\hpool}{$h^{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{pool}}}}$}
\newcommand{\fout}{$f^{\raisebox{0.5ex}{\scalebox{0.7}{\textrm{out}}}}$}


\begin{tikzpicture}[
    node distance=0.5cm and 0.4cm,
    invisible/.style={},
    all/.style={inner sep=0pt, draw},
    function/.style={all, fill=gray!20,
    minimum width=20pt, minimum height=\minheight, align=center},
    module/.style={all, rounded corners=2mm, fill=gray!20,
    minimum width=20pt, minimum height=\minheight, align=center},
    vect/.style={module, fill=green!20, text width=20pt, minimum width=20pt, minimum height=20pt},
    3dvect/.style={module, fill=green!20,
    minimum width=20pt, align=center, text width=20pt, text centered, text depth=2.25*\minheight, anchor=center},
    natural/.style={module, fill=orange!20},
    scalar/.style={module, fill=red!20},
    key/.style={module, fill=red!20},
    value/.style={module, fill=blue!20},
    prime/.style={module, fill=yellow!20},
    nvalue/.style={module, fill=cyan!20},
    arrow/.style={-stealth},
]

\def\numnodes{4}
\def\ndim{3}
\def\myposition{4}


% position
\inputnode[scalar]{position}{\myposition}


% alpha: inputs
\inputnode[invisible]{alpha_0}{}
\addlayer{alpha}


% w
\node[invisible, above={\medvertispace + \minheight} of alpha_0] (w_0) {};
\addlayer[3dvect]{w}


% z
\node[invisible, above={\bigvertispace + \minheight} of w_0] (z_0) {};
\addlayer[3dvect]{z}
\node[invisible, right=\decalage of z_0] (zS_0) {};
\addlayer[3dvect]{zS}


% fin
\foreachvector{\draw[arrow] (alpha_\i) -- (w_\i);}
\addontopoffun{alpha_1}{fin_1}{\scriptsize\fin}
\addlayerfun{fin}{\scriptsize\fin}




\input{attentionhead11.tex}




% Attention head box
\ifbool{showlayers}{
\node[draw, fit={(hmask) (key_1) (vprime_\numnodes)},
    minimum height=\minheight+2pt, inner sep=4pt,
    name=atthead,
    line width= 0.01mm
] {};
\node[above right=0mm and +2mm of atthead.east, anchor=west] (attheadlabel){$\mathcal{H}$};
\draw[={Latex[width=2mm,length=2mm]}] (atthead.east) -- (attheadlabel);}{}











\input{attentionhead12.tex}



\foreachvector{\draw[arrow] (hout_\i) -- (yS_\i);}



% zSS
\node[invisible, above={\bigvertispace + \minheight} of yS_0] (zSS_0) {};
\addlayer[3dvect]{zSS}


\input{attentionlayer2.tex}


% v
\node[invisible, above={\bigvertispace + \minheight} of ySS_0] (v_0) {};
\addlayer[3dvect]{v}

\foreachvector{\draw[arrow] (ySS_\i) -- (v_\i);}
\addontopoffun{ySS_1}{gout_1}{\scriptsize \gout}
\addlayerfun{gout}{\scriptsize \gout}










% Encoder layer box
\ifbool{showlayers}{
\node[draw, fit={(hmask) (key_1) (gout_\numnodes) (value_\numnodes)},
    minimum height=\minheight+2pt, inner sep=8pt,
    name=enclayer
] {};
\node[right=2mm of enclayer.east, anchor=west] (enclayerlabel){$\mathcal{E}$};
\draw[={Latex[width=2mm,length=2mm]}] (enclayer.east) -- (enclayerlabel);}{}



% beta: outputs
\node[invisible, above={\medvertispace + \minheight} of v_0] (beta_0) {};
\addlayer{beta}

\foreachvector{\draw[arrow] (v_\i) -- (beta_\i);}
\addontopoffun{v_1}{fout_1}{\scriptsize \fout}
\addlayerfun{fout}{\scriptsize \fout}



\end{tikzpicture}

\end{document}
