\documentclass[9pt,notheorems]{beamer} %global font-size
\usepackage{UESTC}
\usepackage{hyperref}
\usepackage[T1]{fontenc}
\usepackage{latexsym,amsmath,xcolor,multicol,booktabs,calligra}
\usepackage{graphicx,pstricks,listings,stackengine}
\usepackage[linesnumbered,ruled,vlined]{algorithm2e}
\usepackage{multirow}
\usepackage{pgfpages}
\author{Zhengren Wang}
\title{Listing Maximal $k$-Plexes in Large Real-World Graphs}
\subtitle{Zhengren Wang, Yi Zhou, Mingyu Xiao, Bakhadyr Khoussainov}
\institute{Algorithms and Logic Group in UESTC}
\date{\today}
\begin{document}

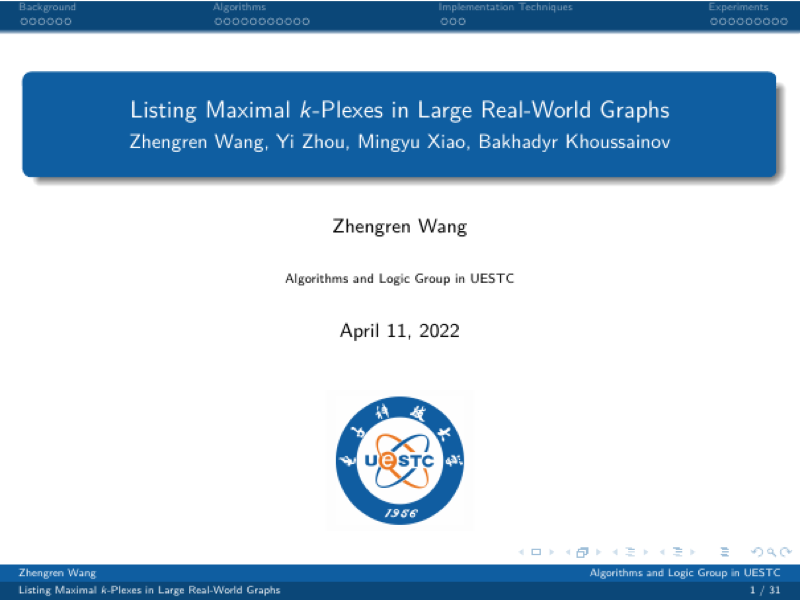

\begin{frame}
\titlepage
\begin{figure}[htpb]
\begin{center}
\includegraphics[width=0.2\linewidth]{pic/logo.pdf}
\end{center}
\end{figure}
\end{frame}
\begin{frame}
\tableofcontents[sectionstyle=show,subsectionstyle=show/shaded/hide,subsubsectionstyle=show/shaded/hide]
\end{frame}
\section{Background}
\begin{frame}{Finding Cohesive Groups}
\vspace{0.5cm}
Finding \textbf{\emph{cohesive groups}} (or \textbf{\emph{communities}}) has received attention from various areas.
\begin{itemize}
\item In the WWW, identify clients sharing similar interests and serve them with a common proxy to reduce network traffic.
\item In social networks, discover closely related individuals.
\item In biological networks, predict the structure and function of protein.
\end{itemize}
\begin{figure}[h]
\centering
\includegraphics[width=0.4\linewidth]{pic/cohesive_groups.pdf}
\end{figure}
\end{frame}
\begin{frame}{Clique Model}
Naturally, cohesive groups can be modeled with \textbf{\emph{Cliques}}.
A clique is a subgraph where vertices are pairwise connected, i.e., a complete graph.
\centering
\begin{minipage}[c]{0.4\linewidth}
\psset{unit=0.8cm}
\begin{figure}[h]
\centering
\includegraphics[height=.3\textheight]{pic/k7.png}\\
\caption{$K_7$}
\end{figure}
\end{minipage}\hspace{1cm}
\begin{minipage}{0.4\linewidth}
\medskip
%\hspace{2cm}
\begin{figure}[h]
\centering
\includegraphics[height=.3\textheight]{pic/k12.png}\\
\caption{$K_{12}$}
\end{figure}
\end{minipage}
\end{frame}
\begin{frame}{$k$-Plex Model}
Due to various reasons like \emph{data noise}, communities rarely appear as cliques.
\textbf{\emph{k-Plexes}} allow every vertex missing at most $k-1$ links to other vertices.
\begin{figure}[h]
\centering
\includegraphics[width=0.8\linewidth]{pic/plexes.png}\\
\caption{$1,2,3,4$-plex}
\end{figure}
\end{frame}
\begin{frame}{Properties}
\begin{lemma}[Hereditary Property]
\begin{itemize}
\item Any induced subgraph of a $k$-plex is still a $k$-plex.
\item A $k$-plex is maximal if it is not a subgraph of any larger $k$-plex.
\end{itemize}
\end{lemma}
\begin{lemma}[Distance Property]
\begin{itemize}
\item Any $k$-plex with at least $2k-1$ vertices has its diameter at most 2.
\item A $k$-plex with at most $2k-2$ vertices may be unconnected.
\end{itemize}
\end{lemma}
\begin{figure}[h]
\centering
\includegraphics[width=0.5\linewidth]{pic/unconnected.pdf}\\
\caption{unconnected $2,3,4,5$-plex}
\end{figure}
\end{frame}
\begin{frame}{Translated Problems}
We model cohesive groups with \textbf{\emph{maximal k-plexes}}.
\begin{problem}[Listing maximal $k$-plexes]
Given a graph $G$, a positive integer $k$, list all maximal $k$-plexes from $G$.
\end{problem}
\begin{problem}[Listing large maximal $k$-plexes]
Given a graph $G$, two positive integers $k$ and $l$ where $l \ge 2k-1$, list all maximal $k$-plexes with at least $l$ vertices.
\end{problem}
% \pause
% \vspace{0.5cm}
% \begin{center}
% We propose \emph{ListPlex} to solve them.
% \end{center}
\end{frame}
% \section{Primitive}
% \begin{frame}{Basic Definitions}
% \begin{itemize}
% \item $N^k_G(v)$ is the set of vertices with distance exactly $k$ to $v$, say $k$-hop neighbors of $v$.
% \item Given an ordering $\eta =v_1,. . .,v_n$ of $V$.
% \begin{itemize}
% \item $N^k_{\prec_\eta}(v_i)$ is $N^k(v_i)\cap \{v_1,...,v_{i-1}\}$.
% \item $N^k_{\succ_\eta}(v_i)$ is $N^k(v_i) \cap \{v_{i+1},...,v_n\}$.
% \end{itemize}
% \end{itemize}
% \end{frame}
\section{Algorithms}
\begin{frame}{The Bron-Kerbosch Algorithm}
Our algorithm stems from the Bron-Kerbosch algorithm, say \emph{BKPlex}.\\
BKPlex accepts three sets $P$, $C$ and $X$ as parameters,
\begin{itemize}
\item $P$: \textbf{\emph{plex vertices}} of the growing $k$-plex,
\item $C$: \textbf{\emph{candidate vertices}} for further branching,
\item $X$: \textbf{\emph{excluded vertices}} to avoid non-maximal solutions.
\end{itemize}
then lists maximal $k$-plexes $G[P']$ with three properties: \\
\begin{minipage}{0.14\linewidth}
\begin{itemize}
\item $P \subseteq P'$
\end{itemize}
\end{minipage}
\begin{minipage}{0.18\linewidth}
\begin{itemize}
\item $P' \subseteq P\cup C$
\end{itemize}
\end{minipage}
\begin{minipage}{0.65\linewidth}
\begin{itemize}
\item $\forall v\in X$, the subgraph $G[\{v\} \cup P']$ is not a $k$-plex.
\end{itemize}
\end{minipage}\\
\vspace{0.25cm}
\begin{flushright}
\footnotesize \textbf{\emph{Hereditary Prop.}} Any induced subgraph of a $k$-plex is still a $k$-plex.
\end{flushright}
\end{frame}
\begin{frame}{The Bron-Kerbosch Algorithm}
\begin{center}
BKPlex branches by doing bipartition recursively. \footnote{Simplified for clarity. In fact, a variant of bipartition.}
\end{center}
\begin{figure}
\includegraphics[width=0.65\linewidth]{pic/bkrec.pdf}\\
\caption{An example of BKPlex.}
\end{figure}
\end{frame}
\begin{frame}{Degeneracy Ordering}
\begin{itemize}
\item $\eta =v_1,. . .,v_n$ is called \emph{degeneracy ordering} (\emph{core ordering}) if each vertex $v_i$ has the minimum degree in the induced subgraph $G[\{v_i,...,v_n\}]$.
\item Given a degeneracy ordering $\eta =v_1,. . .,v_n$, the degree of $v_i$ in $G[\{v_i,...,v_n\}]$ is called the \emph{core number} of $v_i$.
\item For any degeneracy ordering of the same graph, the largest core number among all vertices is a constant $D$ called \emph{degeneracy}.
\item Due to the sparsity of many real-world graphs, $D \ll \Delta \ll n$ where $\Delta$ is the maximum degree.
\end{itemize}
\begin{figure}
\only<1>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_1.pdf}
\end{center}
}
\only<2>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_2.pdf}
\end{center}
}
\only<3>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_3.pdf}
\end{center}
}
\only<4>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_4.pdf}
\end{center}
}
\only<5>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_5.pdf}
\end{center}
}
\only<6>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_6.pdf}
\end{center}
}
\only<7>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_7.pdf}
\end{center}
}
\only<8>{
\begin{center}
\includegraphics[width=0.3\linewidth]{pic/order_8.pdf}
\end{center}
}
\only<9>{
\begin{center}
\includegraphics[width=0.6\linewidth]{pic/order.pdf}
\end{center}
}
\caption{An example of degeneracy ordering.}
\end{figure}
\end{frame}
\begin{frame}{Recent Algorithms \footnote{Simplified for clarity.}}
\textbf{\emph{Pivot Heuristic}} Zhou et al. (2020) proposed \emph{BKPivot} with a \emph{pivot} heuristic in the branch scheme of BKPlex, and improved its running time from $O^*(2^n)$ to $O^*(\gamma_k^n)$, where $\gamma_k<2$. \footnote{The notation $O^*$ omits the polynomial factors.}\\
\vspace{0.5cm}
\textbf{\emph{Graph Decomposition}} Conte et al. (2018) proposed \emph{D2K}, a decomposition-based algorithm for listing $k$-plexes with the diameter at most 2.\\
For each vertex, D2K builds a local subgraph and then adopts BKPlex to list maximal $k$-plexes locally which runs in $O^*(2^{D\Delta})$.\\
\vspace{0.25cm}
\begin{flushright}
\footnotesize \textbf{\emph{Distance Prop.}} Any $k$-plex with at least $2k-1$ vertices has the diameter at most 2.
\end{flushright}
\pause
\vspace{0.5cm}
\begin{center}
We combine them and propose \emph{ListPlex} running in $O^*(\gamma_k^D)$.
\end{center}
\end{frame}
\begin{frame}{ListPlex}
\framesubtitle{Listing All Maximal $k$-Plexes}
Based on Distance Property, ListPlex divides its task into two parts.
\begin{itemize}
\item \emph{Part I}: k-plexes with size at most $2k-2$. \footnotesize (Solved directly by BKPlex) \normalsize
\item \emph{\textbf{Part II}}: k-plexes with size at least $2k-1$.
\end{itemize}
\vspace{0.25cm}
\begin{flushright}
\footnotesize \textbf{\emph{Distance Prop.}} Any $k$-plex with at least $2k-1$ vertices has the diameter at most 2.
\end{flushright}
% \vspace{0.5cm}
% \begin{theorem}
% Given a graph $G$ with degeneracy $D$, for fixed $k$, ListPlex runs in $O^*(\gamma_k^D)$.
% \end{theorem}
\end{frame}
\begin{frame}{ListPlex}
\framesubtitle{Part II}
\textbf{\emph{Procedure}}\\
\vspace{0.25cm}
1) Sort $V$ by a degeneracy ordering $\eta=v_1\dots v_n$.\\
\begin{itemize}
\item $N^k(v)$ denotes $k$-hop neighbors of $v$.
\item $N^k_{\succ}(v_i)$ denotes $N^k(v_i) \cap \{v_{i+1},...,v_n\}$, say \textbf{\emph{forward}} $k$-hop neighbors of $v_i$
\end{itemize}
\vspace{0.2cm}
2) From $v_1$ to $v_n$, in the $i$-th iteration, list maximal $k$-plexes with $i$ as the minimum index of vertices.
\begin{itemize}
\item Build \textbf{\emph{seed graph}} $G_i= G[\{v_i\}\cup N_{\succ}(v_i) \cup N^2_{\succ}(v_i)]$.
\item Call BKPivot with given combinations of $N^2_{\succ}(v_i)$, say \textbf{\emph{seed set}} $S$.
\item Validate maximality in $G$ for $k$-plexes generated in $G_i$.
\end{itemize}
\end{frame}
\begin{frame}{ListPlex}
\framesubtitle{Part II}
\begin{figure}
\includegraphics[width=0.49\linewidth]{pic/degen.pdf}
\includegraphics[width=0.49\linewidth]{pic/seeds.pdf}
\caption{An example of ListPlex's Part II.
(L) sort $V$ in degeneracy ordering $\eta$ and induce seed graphs $G_i$ for each $v_i \in \eta$.
(R) enumerate $S\subseteq N^2_{\succ}(v_i)$ with bound $|S|\le k-1\;(k=3)$ and call BKPivot with $P_s, C_s, X_s$.
}
\end{figure}
\end{frame}
\begin{frame}{ListPlex}
\framesubtitle{Graph Decompostion}
\centering
\includegraphics[width=0.7\linewidth]{pic/degen.pdf}\\
\begin{minipage}{0.45\linewidth}
\begin{itemize}
\item Cohesive groups appear locally in large real-world graphs,
\item Parallelism,
\end{itemize}
\end{minipage}
\begin{minipage}{0.45\linewidth}
\begin{itemize}
\item Smaller scale and better locality,
\item $D \ll \Delta$.
\end{itemize}
\end{minipage}
\end{frame}
\begin{frame}{ListPlex}
\framesubtitle{Seed Set}
\centering
\includegraphics[width=0.8\linewidth]{pic/seeds.pdf}
\begin{minipage}{0.45\linewidth}
\begin{itemize}
\item At most $k-1$ vertices come from $N^2_{\succ}(v_i)$,
\item Reducing candidates fast,
\end{itemize}
\end{minipage}
\begin{minipage}{0.45\linewidth}
\begin{itemize}
\item $|N^2_{\succ}(v_i)|$ is potentially $D\Delta$,
\item Pruning rules.
\end{itemize}
\end{minipage}
\end{frame}
\begin{frame}{ListPlex}
\framesubtitle{Listing Large Maximal k-Plexes}
With lower bound $l$, a related lower bound $l'$ can be derived.
\begin{lemma}
Assume $|P|\ge l$, for any vertex pair $u,v \in P$, $|N(u)\cap N(v) \cap P| \ge l'$
\end{lemma}
\vspace{0.25cm}
Removing unfruitful candidates from $G_i$ reduces the scale of $G_i$.\\
\begin{itemize}
\item Consider vertex pair $(v_i,u)$, $u \in V_i$.
\end{itemize}
\vspace{0.25cm}
Dropping unfruitful seed sets $S$ saves the forthcoming exponential search.
\begin{itemize}
\item Consider vertex pair $(u,v)$ from some $S$.
\end{itemize}
\end{frame}
\section{Implementation Techniques}
\begin{frame}{Reducing cache misses}
Validating maximality in $G$ for maximal $k$-plex of $G_i$ suffers a high amount of cache misses.\\
\vspace{0.5cm}
Alleviation:\\
\begin{itemize}
\item Build a bipartite graph $B_i$ for each $G_i$, which serves as a cache of currently useful data of large $G$,
\item Pruning bipartite graph just like seed graph.
\end{itemize}
\end{frame}
\begin{frame}{Parallelization}
ListPlex owns appealing parallel features.\\
\vspace{0.5cm}
How To:\\
\begin{itemize}
\item Parallelize searches of maximal $k$-plexes on each $G_i$, say $T_i$,
\item Split $T_i$ when some cores are idle for better load balance,
\item Construct degeneracy ordering and perform generated $T_i$ in parallel.
\end{itemize}
\end{frame}
\section{Experiments}
\begin{frame}{Dataset}
\centering
All graphs are taken from SNAP and LAW \footnote{http://law.di.unimi.it/}.
\begin{table}[h]
% \scriptsize
\centering
\caption{Considered networks and their properties}
\label{tbl-data}
\resizebox{0.45\columnwidth}{!}{
\begin{tabular}{c|c|c|c|c}
\toprule[2pt]
Network & n & m & $\Delta$ & D \\
\hline
jazz & 198 & 2742 & 100 & 29 \\
ca-grqc & 5241 & 14484 & 81 & 43\\
gnutella08 & 6301 & 41554 & 97 & 10\\
wiki-vote & 7116 & 100763 & 1065 & 53\\
lastfm & 7624 & 55612 & 216 & 20\\
\hline
as-caida & 26475 & 53381 & 2628 & 22\\
soc-epinions & 75888 & 405739 & 3044 & 67\\
soc-slashdot & 82144 & 500480 & 2548 & 54\\
email-euall & 265214 & 365569 & 7636 & 37\\
amazon0505 & 410236 & 2439436 & 2760 & 10\\
in-2004 & 1353703 & 13126172 & 21869 & 488\\
soc-pokec & 1632803 & 22301964 & 14854 & 47\\
as-skitter & 1696415 & 11095298 & 35455 & 111\\
soc-livejournal & 4847571 & 68993773 & 14815 & 360\\
\hline
arabic-2005 & 22744080 & 639999458 & 575628 & 3247\\
uk-2005 & 39459925 & 936364282 & 1372171 & 584\\
it-2004 & 41291594 & 1150725436 & 1243927 & 3209\\
webbase-2001 & 118142155 & 1019903190 & 816127 & 1506\\
\bottomrule[2pt]
\end{tabular}
}
\end{table}
\end{frame}
\begin{frame}{Listing All Maximal $k$-Plexes}
\begin{table}[h]
\centering
\caption{Listing all maximal $k$-plexes in small graphs}
\label{tbl-pro1}
\resizebox{0.8\linewidth}{!}{
\begin{tabular}{c|c|c|c|c|c|c|c}
\toprule[2pt]
\multirow{2}{*}{Network} & \multirow{2}{*}{$k$} & \multirow{2}{*}{\#$k$-plexes} & \multicolumn{4}{c|}{The running time (s)} & \multirow{2}{*}{Speedup}\\
\cline{4-7}
& & & BKPlex & BKPivot & ListPlex & ListPlex(16)&\\
\hline
jazz & 2 & 35214 & 648.864 & 0.29 & \textbf{0.086} & 0.408 & 0.211 \\
jazz & 3 & 3602575 & 772.826 & 17.55 & \textbf{6.477} & 0.832 & 7.785 \\
jazz & 4 & 193056583 & 3226.746 & 829.40 & \textbf{417.646} & 26.187 & 15.949 \\
\hline
ca-grqc & 2 & 13718439 & OOT & 1858.02 & \textbf{649.985} & 40.880 & 15.899\\
\hline
gnutella08 & 2 & 19866959 & 1500.208 & 3627.57 & \textbf{1117.858} & 70.207 & 15.922\\
\hline
wiki-vote & 2 & 66193264 & 10356.553 & 10671.92 & \textbf{1526.884} & 95.656 & 15.962\\
\hline
lastfm & 2 & 29086855 & 2643.394 & 6676.89 & \textbf{1989.701} & 124.525 & 15.978\\
\bottomrule[2pt]
\end{tabular}
}
\end{table}
\end{frame}
\begin{frame}{Listing Large Maximal $k$-Plexes}
\begin{table}[t]
\centering
\caption{The running time of listing large maximal $k$-plexes from small and medium graphs by CommuPlex\footnotemark[5], D2K\footnotemark[6] and ListPlex.}
\footnotetext[5]{Zhou et al. (2020)}
\footnotetext[6]{Conte et al. (2018)}
\label{tbl-community1}
\resizebox{\linewidth}{!}{
\begin{tabular}{c|c|c|c|c|c|c|c|c|c|c|c|c|c}
\toprule[2pt]
\multirow{2}{*}{\tabincell{c}{Graph\\ $(|V|,|E|)$}} & \multirow{2}{*}{$k$} & \multirow{2}{*}{$l$} & \multirow{2}{*}{\#$k$-plexes} & \multicolumn{3}{c|}{The running time (s)} & \multirow{2}{*}{\tabincell{c}{Graph\\ $(|V|,|E|)$}} & \multirow{2}{*}{$k$} & \multirow{2}{*}{$l$} & \multirow{2}{*}{\#$k$-plexes} & \multicolumn{3}{c}{The running time (s)}
\\
\cline{5-7} \cline{12-14}
& & & & CommuPlex & D2K & ListPlex & & & & & CommuPlex & D2K & ListPlex\\
\hline
\tabincell{c}{jazz (198, 2742)}
& 4 & 12 & 2745953 & 25.218 & 33.054 & \textbf{4.498} &\multirow{9}{*}{\tabincell{c}{wiki-vote\\ (7116, 100763)}} & \multirow{3}{*}{2} & 12 & 2919931 & 75.871 & 115.757 & \textbf{17.653} \\
\cline{1-7}
\tabincell{c}{lastfm (7624, 55612)} & 4 & 12 & 1827337 & 20.724 & 23.991 & \textbf{4.586} & & & 20 & 52 & 4.52 & 11.289 & \textbf{0.591} \\
\cline{1-7}
\multirow{2}{*}{\tabincell{c}{as-caida\\(26475, 53381)}} & 3 & 12 & 281251 & 5.684 & 13.421 & \textbf{0.867} & & & 30 & 0 & 1.033 & \textbf{0.027} & 0.091 \\
\cline{2-7} \cline{9-14}
& 4 & 12 & 15939891 & 300.388 & 785.506 & \textbf{47.98} & & \multirow{3}{*}{3} & 12 & 458153397 & OOT & OOT & \textbf{2185.598} \\
\cline{1-7}
\multirow{3}{*}{\tabincell{c}{amazon0505\\(410236, 2439436)}} & 2 & 12 & 376 & 1.825 & 0.641 & \textbf{0.137} & & & 20 & 156727 & 595.636 & 1852.186 & \textbf{9.384} \\
\cline{2-7} & 3 & 12 & 6347 & 11.359 & 0.77 & \textbf{0.286} & & & 30 & 0 & 1.072 & \textbf{0.029} & 0.1 \\
\cline{2-7} \cline{9-14} & 4 & 12 & 105649 & 47.049 & 5.338 & \textbf{1.171} & & \multirow{2}{*}{4} & 20 & 46729532 & OOT & OOT & \textbf{1174.2} \\
\cline{1-7} \multirow{4}{*}{\tabincell{c}{email-euall\\(265214, 365569)}} & 2 & 12 & 412779 & 8.793 & 11.199 & \textbf{1.946} & & & 30 & 0 & 9.17 & 3.627 & \textbf{0.112} \\
\cline{2-14} & \multirow{2}{*}{3} & 12 & 32639016 & 619.384 & 1043.266 & \textbf{91.62} & \multirow{8}{*}{\tabincell{c}{soc-pokec\\(1632803, 22301964)}} & \multirow{3}{*}{2} & 12 & 7679906 & 1537.506 & 172.987 & \textbf{47.475} \\
& & 20 & 2637 & 10.754 & 53.691 & \textbf{0.429} & & & 20 & 94184 & 1064.371 & 20.03 & \textbf{15.161} \\
\cline{2-7} & 4 & 20 & 1707177 & 825.126 & 3800.889 & \textbf{24.089} & & & 30 & 3 & 662.64 & \textbf{8.637} & 9.557 \\
\cline{1-7} \cline{9-14} \multirow{7}{*}{\tabincell{c}{soc-slashdot\\(82144, 500480)}} & \multirow{3}{*}{2} & 12 & 27208777 & 376.071 & 213.141 & \textbf{59.42} & & \multirow{3}{*}{3} & 12 & 520888893 & OOT & OOT & \textbf{1607.285} \\
& & 20 & 11411028 & 227.016 & 137.159 & \textbf{32.988} & & & 20 & 5911456 & 1470.536 & 856.393 & \textbf{46.262} \\
& & 30 & 453 & 10.77 & 16.481 & \textbf{0.688} & & & 30 & 5 & 717.425 & \textbf{9.993} & 10.127 \\
\cline{2-7} \cline{9-14} & \multirow{3}{*}{3} & 12 & 2807943240 & OOT & 26029.006 & \textbf{7813.045} & & \multirow{2}{*}{4} & 20 & 318035938 & 34048.155 & OOT & \textbf{1825.216} \\
& & 20 & 1303148522 & 28361.707 & 15308.777 & \textbf{4538.022} & & & 30 & 4515 & 1140.117 & 111.987 & \textbf{11.211} \\
\cline{8-14} & & 30 & 1679468 & 699.876 & 2066.598 & \textbf{51.364} & \multirow{6}{*}{\tabincell{c}{soc-epinions\\(75888, 405739)}} & \multirow{3}{*}{2} & 12 & 49823056 & 843.9 & 735.589 & \textbf{193.307} \\
\cline{2-7} & 4 & 30 & 502699966 & OOT & OOT & \textbf{6680.261} & & & 20 & 3322167 & 137.427 & 180.061 & \textbf{19.382} \\
\cline{1-7} \multirow{4}{*}{\tabincell{c}{as-skitter\\(1696415, 11095298)}} & 2 & 50 & 47969775 & OOT & OOT & \textbf{520.884} & & & 30 & 0 & 8.995 & 12.109 & \textbf{0.492} \\
\cline{9-14} & 2 & 100 & 0 & 1.793 & 2.951 & \textbf{0.716} & & \multirow{2}{*}{3} & 20 & 548634119 & 27037.614 & 35525.693 & \textbf{3072.267} \\
\cline{2-7} & 3 & 50 & 21070497438 & OOT & OOT & OOT & & & 30 & 16066 & 546.69 & 2591.439 & \textbf{6.123} \\
\cline{9-14} & 3 & 100 & 0 & 2.37 & 3.285 & \textbf{0.718} & & 4 & 30 & 13172906 & OOT & OOT & \textbf{661.103} \\
\cline{1-7} \cline{8-14} \multirow{4}{*}{\tabincell{c}{in-2004\\(1353703, 13126172)}} & 2 & 50 & 25855779 & 7663.843 & 576.06 & \textbf{150.212} &\multirow{4}{*}{\tabincell{c}{com-livejournal\\(4847571, 68993773)}} & 2 & 340 & 650322 & 2284.435 & OOT & \textbf{109.382} \\
& 2 & 100 & 9978037 & 5899.638 & 256.225 & \textbf{72.063} & & 2 & 345 & 0 & 57.548 & 13589.487 & \textbf{6.914} \\
\cline{2-7} \cline{9-14} & 3 & 50 & 29045783792 & OOT & OOT & OOT & & 3 & 340 & 555718694 & OOT & OOT & \textbf{22863.467} \\
& 3 & 100 & 4257410159 & OOT & OOT & \textbf{28384.76} & & 3 & 345 & 3963139 & 24861.871 & OOT & \textbf{826.183} \\
\bottomrule[2pt]
\end{tabular}
}
\end{table}
\end{frame}
\begin{frame}{Listing Large Maximal $k$-Plexes}
\begin{minipage}{0.45\linewidth}
\begin{table}[H]
\centering
\caption{The parallel running time of large networks by ListPlex and D2K with 16 threads.}
\label{tbl-community2}
\resizebox{\linewidth}{!}{
\begin{tabular}{c|c|c|c|c|c}
\toprule[2pt]
\multirow{2}{*}{\tabincell{c}{Graph\\ $(|V|,|E|)$}} & \multirow{2}{*}{$k$} & \multirow{2}{*}{$l$} & \multirow{2}{*}{\#$k$-plexes} & \multicolumn{2}{c}{The running time (s)}
\\
\cline{5-6}
& & & & D2K(16) & ListPlex(16)\\
\hline \multirow{4}{*}{\tabincell{c}{arabic-2005\\(22744080, 639999458)}} & 2 & 800 & 224870903 & 2195.272 & \textbf{714.159}\\
& 2 & 1000 & 236897 & 151.328 & \textbf{40.202}\\
\cline{2-6}
& 3 & 800 & $>$25062182205 & OOT & OOT\\
& 3 & 1000 & 34155502 & 587.967 & \textbf{128.737}\\
\hline \multirow{4}{*}{\tabincell{c}{uk-2005\\(39459925, 936364282)}} & 2 & 250 & 106243475 & OOT & \textbf{355.855}\\
& 2 & 500 & 256406 & 318.118 & \textbf{35.001}\\
\cline{2-6}
& 3 & 250 & $>$18336111409 & OOT & OOT\\
& 3 & 500 & 28199814 & 9506.661 & \textbf{121.726}\\
\hline \multirow{4}{*}{\tabincell{c}{it-2004\\(41291594, 1150725436)}} & 2 & 2000 & 675111 & 340.904 & \textbf{41.983} \\
& 2 & 3000 & 675111 & 307.735 & \textbf{38.468} \\
\cline{2-6}
& 3 & 2000 & 197679229 & 4254.456 & \textbf{724.979}\\
& 3 & 3000 & 197679229 & 4235.389 & \textbf{715.002} \\
\hline \multirow{4}{*}{\tabincell{c}{webbase-2001\\(118142155, 1019903190)}} & 2 & 800 & 1599005 & 374.134 & \textbf{54.19} \\
& 2 & 1000 & 1164383 & 346.393 & \textbf{53.651} \\
\cline{2-6}
& 3 & 800 & 1785341050 & 36116.817 &\textbf{5521.386} \\
& 3 & 1000 & 1484341137 & 35005.343 & \textbf{6960.816} \\
\bottomrule[2pt]
\end{tabular}
}
\end{table}
\end{minipage}\hspace{0.5cm}
\begin{minipage}{0.45\linewidth}
\begin{figure}[H]
\centering
\includegraphics[width=\linewidth]{pic/parallel.pdf}\\
\caption{The speedup of ListPlex for the large graphs with different parameters. }
\end{figure}
\end{minipage}
\end{frame}
\begin{frame}{Excluding unfruitful seed sets}
\begin{figure}[htb]
\centering
\includegraphics[width=0.8\linewidth]{pic/prune.pdf}
\caption{The number of seed sets and running time with and without Prune Rule 2.}
\end{figure}
\end{frame}
\begin{frame}{Reducing cache misses}
\begin{figure}[htb]
\centering
\includegraphics[width=0.8\linewidth]{pic/bipartite.pdf}\\
\caption{The total number of data cache misses and the running time with and without using bipartite graph $B_i$.}
\end{figure}
\end{frame}
% \section{Further Discussion}
% \begin{frame}{Ordering}
% The power of ordering has been discussed for a long time.\\
% \vspace{0.5cm}
% Q: Is there a better ordering?\\
% \begin{itemize}
% \item Repeatedly removing a node $v$ which minimizes $|N(v)|$ and tie-breaking on $|N^2(v)|$ in the remaining graph?
% \item Repeatedly removing a node $v$ which minimizes $|N(v)|+|N^2(v)|$ in the remaining graph ($2$-club)?
% \end{itemize}
% \end{frame}
% \begin{frame}{Branch Scheme}
% For the worst-case time complexity, the below theorem holds.
% \begin{theorem}\label{Thm:R-time}
% Given a graph $G$ with degeneracy $D$, ListPlex runs in $O^*(\gamma_k^D)$ for fixed $k$, where $\gamma_k<2$ is the largest root of $1=x^{-1}+\dots+x^{-k-1}$.
% \end{theorem}
% When $k$ = 1, 2, 3, 4, and 5, $\gamma_k$= 1.618, 1.839, 1.928, 1.966 and 1.984, respectively.\\
% \vspace{0.5cm}
% Q: Is there a better branch scheme satisfying the following conditions?
% \begin{itemize}
% \item Listing $1$-plexes runs in $O^*(3^{\frac{n}{3}})$ time\footnotemark[6],
% \item Listing $2$-plexes runs in no more than $O^*(X)$ time\footnotemark[7].
% \end{itemize}
% \footnotetext[6]{Tomita et al. (2006)}
% \footnotetext[7]{XXX et al. (20XX)}
% \end{frame}
\begin{frame}
\begin{center}
{\Huge Q\&A}
\end{center}
\end{frame}
\begin{frame}
\begin{center}
{\Huge Thanks!}
\end{center}
\end{frame}
% \section{Appendix}
% \begin{frame}{Experiment Setup}
% \begin{itemize}
% \item C++11 and g++-9.3.0 with '-O3',
% \item The OpenMP shared-memory library,
% \item Ubuntu20.04 OS, two-way Intel Xeon Gold 6130 CPUs (2.1GHz, 22MB L3-cache, 2 CPU chips and 32 physical cores in total), a 132G RAM and a 1T SSD,
% \item Hyper-threading and turbo techniques disabled.
% \end{itemize}
% \end{frame}
\end{document}Preview
PDF Preview
Create an account to compile and preview
