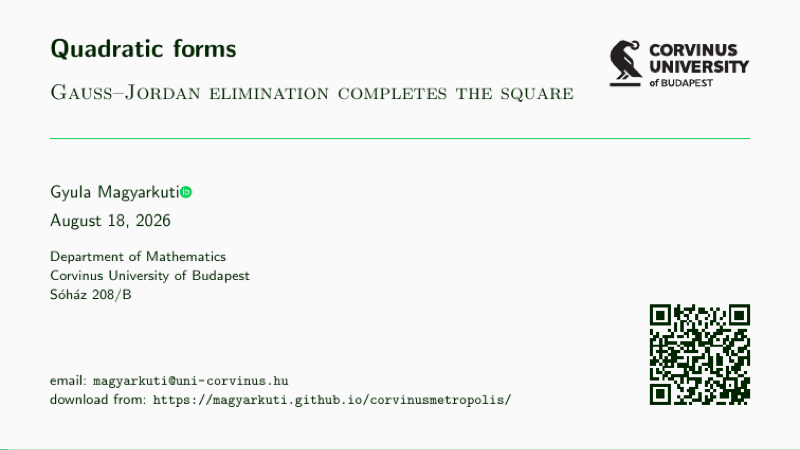

\title{Quadratic forms}
\subtitle{Gauss--Jordan elimination completes the square}
\author[Magyarkuti]{Gyula~Magyarkuti\orcidlink{0000-0003-4444-0481}}%The name only, if the author does not prefer orcidlink.
\email{magyarkuti@uni-corvinus.hu}

\institute[Corvinus University]
  {
  Department of Mathematics\\
  Corvinus University of Budapest\\
  Sóház 208/B

  \begin{minipage}[b]{0.8\linewidth}
  email: \putemail\\
  download from: \url{https://magyarkuti.github.io/corvinusmetropolis/}
  \end{minipage}
  \hfill{\adjustbox{valign=B}{\qrcode[hyperlink]{https://magyarkuti.github.io/corvinusmetropolis/}}}%% iff qrcode needed, otherwise comment this line!
  }
%\date[Week 6. (Fall) Linear Algebra]{\today}
\titlegraphic{\hfill{\includegraphics[width=.2\linewidth]{\myinstlogo}}}
%corvinus_Department_of_Mathematics_logo_black.eps

\subject{Linear Algebra}
\keywords{Gauss--Jordan elimination, completing the square}

\newcommand{\lin}{\operatorname{lin}}
\begin{document}
\openingframes{Outline}
%\metroset{block=fill}
\section{Definition of quadratic forms}
\frame{
A quadratic form is a special multi-variable function.
\begin{definition}
    Let $A\in\mathbb{R}^{n\times n}$ be a symmetric matrix.
    Assume that $a_{k,j}$ denotes the appropriate element of that matrix.
    The function $Q:\mathbb{R}^n\to\mathbb{R}$
    \[
    Q\left( x_{1},x_2,\cdots,x_n \right)=
    \sum_{k=1}^n\sum_{j=1}^na_{k,j}x_kx_j
    \]
    is called $n$-variable quadratic function.
\end{definition}
If $n=1$ then $Q(x_1)=ax_1^2$.\\
If $n=2$ then
$$
Q\left( x_1,x_2 \right)=a_{1,1}x_1^2+a_{1,2}x_1x_2+a_{2,1}x_2x_1+a_{2,2}x_2^2.
$$
Compute the case when $n=3$.
}
\begin{frame}
    \begin{theorem}
        If $A\in\mathbb{R}^{n\times n}$ is a symmetric matrix then the quadratic form determined by
        $A$ is
        \[
            Q(x)=x\cdot Ax
        \]
        for every $x\in\mathbb{R}^n.$
    \end{theorem}
    \begin{example}
        Write the symmetric matrix of quadratic form given before.
        Write the quadratic form of a symmetric matrix given before.
    \end{example}
    \begin{theorem}
        The quadratic form determined by $A+B$ is the same as the sum of quadratic forms determined by $A$ and $B$ respectively.
        Similarly,
        the quadratic form determined by $\alpha A$ is the same as the form determined by $A$ multiplied by $\alpha$.
    \end{theorem}
\end{frame}
\begin{frame}
    \frametitle{Definiteness}
    Our goal is to classify a quadratic form with respect to its range!
    \begin{definition}
        Let $Q:\mathbb{R}^n\to\mathbb{R}$ be a non-zero quadratic form. It is called
        \begin{description}
            \item[\emph{positive definite,}] if $Q\left( x \right)>0$ for every $x\in\mathbb{R}^n,x\neq 0$;
            \item[\emph{positive semidefinite,}] if $ Q\left( x \right)\geq 0$ for every $x\in\mathbb{R}^n$,
                but there exists a $z\in\mathbb{R}^n, z\neq 0$ such that $Q\left( z \right)=0$;
            \item[\emph{negative definite,}] if $ Q\left( x \right)<0$ for every $x\in\mathbb{R}^n,x\neq 0;$
            \item[\emph{negative semidefinite,}] if $ Q\left( x \right)\leq 0$ for every $x\in\mathbb{R}^n$,
                but there exists a $z\in\mathbb{R}^n, z\neq 0$ such that $Q\left( z \right)=0$;
            \item[\emph{indefinite,}] if there exist two vectors $x,y\in\mathbb{R}^n$ for which
                $Q\left( x \right)>0$ but $Q\left( y \right)<0$.
        \end{description}
    \end{definition}
\end{frame}
\section{Dyadic decomposition}
\subsection{Dyad and completing the square}
\begin{frame}
    The dyad is a special symmetric matrix representing the perfect squares.
    \begin{definition}
        A symmetric matrix $A\in\mathbb{R}^{n\times n}$ is called \alert{\emph{dyad}},
        if there exists a vector
        $a\in\mathbb{R}^{n\times 1}$ for which
%        \metroset{block=fill}
%        \begin{block}{}
        \(
            A=a\cdot a^T
        \)
%        \end{block}
%        \metroset{block=transparent}
    \end{definition}
    \begin{theorem}
        A quadratic form is a complete square if and only if it is determined by a dyad.
        If $A=a\cdot a^T$ where $a=\left( a_1,a_2,\cdots,a_n \right)$, then
%        \metroset{block=fill}
%        \begin{block}{}
          \(
             Q\left( x_1,x_2,\cdots,x_n \right)=
              \left( a_1x_1+a_2x_2+\cdots+a_nx_n \right)^2,
          \)
%        \end{block}
%        \metroset{block=transparent}
        here $Q$ is the quadratic form determined by the dyad $A$.
    \end{theorem}
\end{frame}
\subsection{High school method for a few variables only}
\begin{frame}
    \frametitle{Decomposition}
    \metroset{block=fill}
    \begin{theorem}
        Every symmetric matrix is a linear combination of dyads. Thus
        every quadratic form is a linear combination of complete squares.
    \end{theorem}
    \metroset{block=transparent}
\begin{example}
    Completing the square, rewrite the following quadratic forms as a linear combination of perfect squares.\\
    $Q\left( x_1,x_2 \right)=x_1^2+4x_1x_2-5x_2^2,$\\
    $Q\left( x_1,x_2 \right)=4x_1^2+6x_1x_2+9x_2^2,$\\
    $Q\left( x_1,x_2 \right)=5x_1^2-6x_1x_2+x_2^2,$\\
    $Q\left( x_1,x_2,x_3 \right)=5x_1^2-6x_1x_2+x_1x_3,$\\
\end{example}
\end{frame}
\subsection{Professional method}
\begin{frame}
\frametitle{Dyadic decomposition using Gauss--Jordan elimination}
Every \(n\)-variable quadratic form can be reduced by subtracting a multiple of a dyad such that the resulting quadratic form has one fewer variable:
\metroset{block=fill}
\begin{theorem}
Consider a symmetric matrix \(A \in \mathbb{R}^{n \times n}\).
Assume that \(a_{t,t} \neq 0\) and denote \(d = \frac{1}{a_{t,t}} a_t\),
where \(a_t\) is the \(t\)-th column of the matrix \(A\).
Then
\[
R = A - a_{t,t} d \cdot d^T
\]
is a symmetric matrix whose $t$-th row (and column) is zero vector.
\end{theorem}

\metroset{block=transparent}
\begin{proof}
The sum of symmetric matrices is symmetric.
If \(\delta_k\) denotes the \(k\)-th coordinate of \(d\), then
\(
a_t^T - a_{t,t} \delta_t d^T
\)
is the \(t\)-th row of matrix \(R\).
It is the zero row because \(\delta_t = 1\) and \(a_{t,t} d = a_t\).
By the symmetry of \(R\), the \(t\)-th column is also the zero column.
\end{proof}
\end{frame}
\frame{
Understanding the second step of the algorithm guaranteeing dyadic decomposition
relies on the observation that the matrix of the residual quadratic form,
namely \[ R = A - a_{t,t} d \cdot d^T, \]
can be calculated far more efficiently than by the original formula.
It was already seen that every element in the \( t \)-th row is zero.
Now let us write down the \( k \)-th row of matrix \( R \) for \( k \neq t \).
It is important to note that the row \( d^T \) is the auxiliary row of the Gauss--Jordan elimination
when choosing the pivot element \( a_{t,t} \).
Consider the \( k \)-th row of the dyad \( d \cdot d^T \) as \( \delta_k d^T \).
Then it is clear that the \( k \)-th row of matrix \( R \) is the difference of the \( k \)-th row of matrix \( A \)
and the row \( a_{t,k} d^T \) because
\[
    a_{t,t} \delta_k d^T = a_{t,t} \frac{a_{k,t}}{a_{t,t}} d^T.
\]

Recognize that this is exactly the computational rule of the elimination algorithm in the case when
the diagonal \( t \)-th element is the pivot and we compute the entries of the rows not containing the pivot element.
}
\frame{
This means that the operation
\[ A - a_{t,t} d \cdot d^T \]
can be calculated by Gauss--Jordan elimination
instead of dyadic multiplication and matrix subtraction.

We have thus proven the following proposition.

\begin{proposition}
Let \( A \in \mathbb{R}^{n \times n} \) be a symmetric matrix such that \( a_{t,t} \neq 0 \).
Let \( R \) be the matrix of the residual quadratic form after removing the first dyad,
that is,
\[
R = A - a_{t,t} d \cdot d^T,
\]
where \( d \) is the \( t \)-th column of matrix \( A \) multiplied by the reciprocal of \( a_{t,t} \).%
\footnote{That is, \( d^T \) is the auxiliary row of the elimination.}
We know that the \( t \)-th column and row of matrix \( R \) contain only zeros.
The rest of matrix \( R \) can be obtained by Gauss--Jordan elimination on matrix \( A \)
with the pivot element \( a_{t,t} \).
\end{proposition}
}
\section{Problems}
\begin{frame}
    \frametitle{Problems}
    \begin{block}{ Write the following quadratic forms as a linear combination of complete squares.}
        \begin{enumerate}
            \item
            $Q\left( x_2,x_3 \right)=13x_2^2-4x_2x_3+8x_3^2$,
            \item
            $Q\left( x_1,x_2,x_3 \right)=5x_1^2+6x_2^2+4x_3^2-4x_1x_2-4x_1x_3$,
            \item
            $Q\left( z_1,z_2,z_3 \right)=2z_1^2+\frac{3}{2}z_3^2+2z_1z_2-4z_1z_3+2z_2z_3$,
            \item
            $Q\left( x_1,x_2,x_3 \right)=3x_2^2+2x_1x_2+2x_1x_3+6x_2x_3$,
            \item
            $Q\left( x_1,x_2,x_3,x_4 \right)=2x_1^2+2x_2^2+2x_3^2+2x_4^2-4x_1x_2+2x_1x_4+2x_2x_3-4x_3x_4$
            \item
            $Q\left( x_1,x_2,x_3\right)=2x_1x_2+2x_2x_3$
        \end{enumerate}
    \end{block}
\end{frame}
\frame{
Let $Q$ be a quadratic form defined as
\[
    Q\left( x_1,x_2,x_3,x_4 \right)=
    \left( x_1+x_2+2x_3+x_4 \right)^2+\left( x_1+x_4 \right)^2+\left( x_2+2x_3 \right)^2
\]
for real numbers $x_1,x_2,x_3,x_4$.
\begin{enumerate}
    \item
        Characterize the definiteness of $Q$.
    \item
        Write the matrix of the quadratic form above.
    \item
        Compute the rank of the matrix above.
    \item
        Write the matrix as a linear combinations of $r$ dyads, where $r$ is the rank above.
\end{enumerate}
}
\section{Definiteness of a quadratic form}
\begin{frame}
    \frametitle{Definiteness}
    Classify a quadratic form with respect to its range!
    \begin{definition}
        Let $Q:\mathbb{R}^n\to\mathbb{R}$ be a non-zero quadratic form. It is called
        \begin{description}
            \item[\emph{positive definite,}] if $Q\left( x \right)>0$ for every $x\in\mathbb{R}^n,x\neq 0$;
        \item[\emph{positive semidefinite,}] if $ Q\left( x \right)\geq 0$ for every $x\in\mathbb{R}^n$,
                but there exists a $z\in\mathbb{R}^n, z\neq 0$ such that $Q\left( z \right)=0$;
            \item[\emph{negative definite,}] if $ Q\left( x \right)<0$ for every $x\in\mathbb{R}^n,x\neq 0;$
            \item[\emph{negative semidefinite,}] if $ Q\left( x \right)\leq 0$ for every $x\in\mathbb{R}^n$,
                but there exists a $z\in\mathbb{R}^n, z\neq 0$ such that $Q\left( z \right)=0$;
            \item[\emph{indefinite,}] if there exist two vectors $x,y\in\mathbb{R}^n$ for which
                $Q\left( x \right)>0$ but $Q\left( y \right)<0$.
        \end{description}
    \end{definition}
\end{frame}
\begin{frame}
    \begin{theorem}
    Consider a square matrix $A$ having rank $r$.
    Assume that
    \[A=B\cdot C\]
    where the number of the columns of $B$ (and the number of the rows of $C$) is the same as the rank $r$.

    Then the row system of $C$ is a linearly independent system.
    \end{theorem}
    \begin{proof}
        Every row of $A$ is a linear combination of the rows of $C$.
        It means that the row system of $C$ is a spanning set of the row space of $A$.
        But the number of the rows of $C$ is the same as the dimension of the row space of $A$,
        thus it is a minimal spanning set.
        We proved, that the rows of $C$ form an independent set.
    \end{proof}
    We also proved that the
    the row system of $C$ is a base of the row space of $A$ and similarly
    the column system of $B$ forms a base of the column space of $A$.
\end{frame}

\subsection{Summary}
\begin{frame}
    \frametitle{Definiteness after completing the square}
    It is not hard to decide the definiteness of a quadratic form if it is given with its dyad decomposition.
    Let $Q$ be an $n$-variable non-zero quadratic form.\\
    If the dyad decomposition
    \begin{itemize}
        \item includes positive and negative pivot terms then $Q$ is an \alert{\emph{indefinite}} quadratic form.
    \end{itemize}
    Now assume the dyad decomposition includes exactly $n$ complete squares.
    If
    \begin{itemize}
        \item all pivot terms are positive numbers then $Q$ is \alert{\emph{positive definite}};
        \item all pivot terms are negative numbers then $Q$ is \alert{\emph{negative definite}}.
    \end{itemize}
\end{frame}
\begin{frame}
    \frametitle{Definiteness after completing the square \ldots}
    If the number of dyads is less than $n$,
    the same characterization holds true but the quadratic form is semidefinite only:\\
    Thus if
    \begin{itemize}
        \item all pivot terms are positive numbers then $Q$ is \alert{\emph{positive semidefinite}};
        \item all pivot terms are negative numbers then $Q$ is \alert{\emph{negative semidefinite}}.
    \end{itemize}
\end{frame}
\frame{\frametitle{Proof.}
    Let us start with the case when,
    in the last tableau of the elimination algorithm,
    all elements on the diagonal are zero,
    but there exists at least one nonzero element.

    Then the quadratic form \(Q\) can be decomposed as \(Q = Q_1 + Q_R\),
    where \(Q_R\) is indefinite.

    For simplicity,
    assume that \(x_1, \dots, x_k\) are the separated variables,
    and \(Q_R\) depends only on the remaining variables.
    Accordingly, the quadratic form \(Q_1\) is a linear combination of at most \(k\) perfect squares.
}
\frame{
    Consider the homogeneous linear system whose coefficient matrix is formed by stacking the auxiliary
    rows of the elimination algorithm in the order given by the elimination tableaux.
    It is clear that the last row contains the variable \(x_k\).

    Each higher row contains at least one more variable than the row below it.
    Thus, for arbitrary values of \(x_{k+1}, \dots, x_n\),
    there exist values for \(x_1, \dots, x_k\) such that the variables form a solution to the linear system, hence
    \(
    Q_1(x_1, \dots, x_n) = 0.
    \)

    This shows that not only \(Q_R\) but also \(Q\) is indefinite.
    }\frame{
    Assume, now that \(Q\) is a linear combination of \(r\) perfect squares,
    where \(r\) is the rank of the matrix representing the original quadratic form.

    Consider the case when there are both positive and negative pivot elements.

    Denote by \(Dx = b_+\) and \(Dx = b_-\) the inhomogeneous systems where the rows of \(D\)
    are the auxiliary rows of the elimination algorithm,
    and the vector \(b_+\) (respectively \(b_-\)) contains $1$ or $0$
    depending on whether the pivot element corresponding to the row is positive or negative.

    Similarly, the elements of \(b_-\) are $1$ or zero,
    depending on whether the pivot element of the corresponding row is negative or not.

    Here, \(x = (x_1, \dots, x_n)\) are the variables of the quadratic form.

    Since the row system of \(D\) is linearly independent system,
    therefore, both systems \(Dx = b_+\) and \(Dx = b_-\) have solutions, implying that \(Q\) is indeed indefinite.
}\frame{
Finally, consider the case when all pivot elements are positive (or all are negative).

It is clear that
\[
Q(x_1, \dots, x_n) \geq 0 \quad (\text{or } \leq 0).
\]
If \(r = n\), then with the above notations, \(D\) is a regular matrix.
Hence,
\[
Q(x) = 0 \quad \text{if and only if} \quad Dx=0, \quad \text{which holds only if} \quad x=0.
\]
This proves the statement about positive (or negative) definite quadratic forms.

If \(r < n\), then the dimension of the nullspace is \(n-r > 0\), so there exists a nonzero \(x\) such that \(Q(x) = 0\).
This proves the statement about positive (or negative) semi definite quadratic forms.
}
\closingframes{Thank you for your attention!}
\begin{frame}
\end{frame}
\end{document}
