\documentclass[11pt,a4paper,final,oneside,onecolumn]{article}
\usepackage[english]{babel}
\usepackage{amssymb}
\usepackage{graphicx}
\usepackage{url}
\usepackage{xcolor}
\usepackage[colorlinks]{hyperref}
\usepackage{listings-owl}
\author{Eugeniu Costetchi}

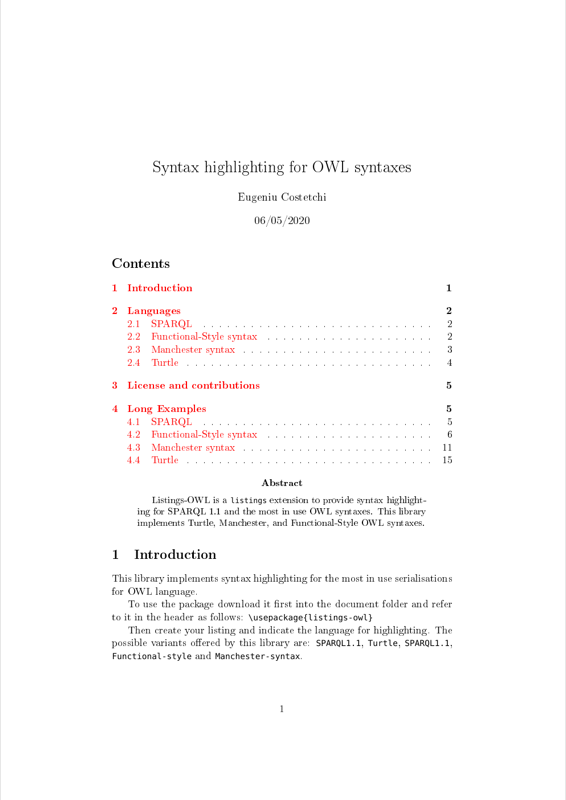

\title{Syntax highlighting for OWL syntaxes}
\date{06/05/2020}
\begin{document}
\maketitle
\tableofcontents
\begin{abstract}
Listings-OWL is a \texttt{listings} extension to provide syntax highlighting for SPARQL 1.1 and the most in use OWL syntaxes. This library implements Turtle, Manchester, and Functional-Style OWL syntaxes.
\end{abstract}
\section{Introduction}
This library implements syntax highlighting for the most in use serialisations for OWL language.
To use the package download it first into the document folder and refer to it in the header as follows: \verb|\usepackage{listings-owl}|
Then create your listing and indicate the language for highlighting. The possible variants offered by this library are: \texttt{SPARQL1.1}, \texttt{Turtle}, \texttt{SPARQL1.1}, \texttt{Functional-style} and \texttt{Manchester-syntax}.
\section{Languages}
This section demonstrates usage of the four languages each in a separate subsection. Each subsection comprises of a small example demonstrating the syntax highlight followed by the \LaTeX code to generate it.
\subsection{SPARQL}
\begin{lstlisting}[language=SPARQL1.1]
PREFIX dc: <http://purl.org/dc/elements/1.1/>
SELECT ?title
WHERE {
?x dc:title ?title
FILTER regex(?title, "^SPARQL")
}
\end{lstlisting}
\begin{verbatim}
\begin{lstlisting}[language=SPARQL1.1]
PREFIX dc: <http://purl.org/dc/elements/1.1/>
SELECT ?title
WHERE
{
?x dc:title ?title
FILTER regex(?title, "^SPARQL")
}
\end{lstlisting}
\end{verbatim}
\subsection{Functional-Style syntax}
\begin{lstlisting}[language=Functional-style]
Prefix(:=<http://example.com/owl/families/>)
Ontology(<http://example.com/owl/families>
Import( <http://example.org/otherOntologies/families.owl> )
Declaration( Class( :Teenager ) )
SubClassOf( :Teenager
DataSomeValuesFrom( :hasAge
DatatypeRestriction( xsd:integer
xsd:minExclusive "12"^^xsd:integer
xsd:maxInclusive "19"^^xsd:integer
)
)
)
\end{lstlisting}
\begin{verbatim}
\begin{lstlisting}[language=Functional-style]
Prefix(:=<http://example.com/owl/families/>)
Ontology(<http://example.com/owl/families>
Import( <http://example.org/otherOntologies/families.owl> )
Declaration( Class( :Teenager ) )
SubClassOf( :Teenager
DataSomeValuesFrom( :hasAge
DatatypeRestriction( xsd:integer
xsd:minExclusive "12"^^xsd:integer
xsd:maxInclusive "19"^^xsd:integer
)
)
)
\end{lstlisting}
\end{verbatim}
\subsection{Manchester syntax}
\begin{lstlisting}[language=Manchester-syntax]
Ontology: <http://example.com/owl/families>
AnnotationProperty: rdfs:comment
Individual: John
Types:
Father,
hasChild exactly 5 OWL:Thing,
hasChild max 4 Parent,
hasChild exactly 3 Parent,
hasChild min 2 Parent
Facts:
hasWife Mary,
hasAge 51
SameAs:
Jack,
otherOnt:JohnBrown
DifferentFrom:
Bill
\end{lstlisting}
\begin{verbatim}
\begin{lstlisting}[language=Manchester-syntax]
Ontology: <http://example.com/owl/families>
Individual: John
Types:
Father,
hasChild exactly 5 OWL:Thing,
hasChild max 4 Parent,
hasChild exactly 3 Parent,
hasChild min 2 Parent
Facts:
hasWife Mary,
hasAge 51
SameAs:
Jack,
otherOnt:JohnBrown
DifferentFrom:
Bill
\end{lstlisting}
\end{verbatim}
\subsection{Turtle}
\begin{lstlisting}[language=Turtle]
@prefix : <http://example.com/owl/families/> .
@prefix owl: <http://www.w3.org/2002/07/owl#> .
<http://example.com/owl/families> rdf:type OWL:Ontology .
:minorAge rdf:type rdfs:Datatype .
:toddlerAge rdf:type rdfs:Datatype ;
OWL:equivalentClass [
rdf:type rdfs:Datatype ;
OWL:oneOf [
rdf:type rdf:List ;
rdf:first 1 ;
rdf:rest [ rdf:type rdf:List ;
rdf:first 2 ;
rdf:rest rdf:nil
]
]
] .
\end{lstlisting}
\begin{verbatim}
\begin{lstlisting}[language=Turtle]
@prefix : <http://example.com/owl/families/> .
@prefix owl: <http://www.w3.org/2002/07/owl#> .
<http://example.com/owl/families> rdf:type OWL:Ontology .
:minorAge rdf:type rdfs:Datatype .
:toddlerAge rdf:type rdfs:Datatype ;
OWL:equivalentClass [
rdf:type rdfs:Datatype ;
OWL:oneOf [
rdf:type rdf:List ;
rdf:first 1 ;
rdf:rest [ rdf:type rdf:List ;
rdf:first 2 ;
rdf:rest rdf:nil
]
]
] .
\end{lstlisting}
\end{verbatim}
\section{License and contributions}
Listings-OWL may be distributed and/or modified under the conditions of the LaTeX Project Public License version 1.3 or later. The Current Maintainer of this work is Eugeniu Costetchi (\url{costezki.eugen@gmail.com}), who welcomes contributions to the package on \href{https://github.com/costezki/owl4latex}{GitHub}.
The goal of this library is to provide a toolkit to draw quickly and efficiently beautiful OWL diagrams. Building such a library can be challenging for one pair of hands alone. If you have used this library yourself or have seen it used, we would greatly appreciate your opinion and feedback . Please open a Github issue or privately email the Current Maintainer with as much information as you can.
We also welcome technical feedback and bug reports in the form of GitHub Issues
and pull requests.
\section{Long Examples}
This set of long examples are possibly useful and should be removed from this document. They are kept currently for consultation and bug-fixing due to their extensive coverage of syntactic features. Their code is not provided but can be consulted directly in the \LaTeX code this document.
\subsection{SPARQL}
\begin{lstlisting}[language=SPARQL1.1]
PREFIX cdm: <http://publications.europa.eu/ontology/cdm#>
PREFIX cmr: <http://publications.europa.eu/ontology/cdm/cmr#>
PREFIX lg: <http://publications.europa.eu/resource/authority/language/>
PREFIX lbl: <http://publications.europa.eu/resource/authority/label-type/>
PREFIX org: <http://www.w3.org/ns/org#>
PREFIX owl: <http://www.w3.org/2002/07/owl#>
PREFIX ev: <http://eurovoc.europa.eu/>
PREFIX 2euvoc4: <http://publications.europa.eu/ontology/euvoc#>
PREFIX sk23os: <http://www.w3.org/2004/02/skos/core#>
prefix ds-type: <http://publications.europa.eu/resource/authority/dataset-type/>
using named graph <http://special.graph/1>
select ?workCellarId ?work_title ?conceptLabel ?language ?dateDocument ?dateCreation ?manifestationType ?mimeType (?itemCellarId as ?download)
WHERE {
VALUES (?conceptLabel ?concept) {
("endemic disease" <http://eurovoc.europa.eu/1758>)
('epidemiology' <http://eurovoc.europa.eu/838>)
("epidemic" <http://eurovoc.europa.eu/837>)
('disease surveillance' <http://eurovoc.europa.eu/c_abfaf2ea>)
("health control" <http://eurovoc.europa.eu/192>)
("public hygiene" <http://eurovoc.europa.eu/3371>)
("respiratory disease" <http://eurovoc.europa.eu/1756>)
("hospital infection" <http://eurovoc.europa.eu/c_9b88f778>)
("patient safety" <http://eurovoc.europa.eu/c_60d3928d>)
("patient's rights" <http://eurovoc.europa.eu/3370>)
("illness" <http://eurovoc.europa.eu/1754>)
}
#?workCellarId owl:sameAs ?workPublicId .
?workCellarId a cdm:work ;
cdm:work_is_about_concept_eurovoc ?concept ;
cdm:work_title ?work_title .
OPTIONAL {?workCellarId cdm:work_date_document ?dateDocument . }
OPTIONAL {?workCellarId cdm:work_date_creation ?dateCreation . }
#?expressionCellarId owl:sameAs ?expressionPublicId .
?expressionCellarId cdm:expression_belongs_to_work ?workCellarId .
OPTIONAL { ?expressionCellarId cdm:expression_uses_language ?language . }
#?manifestationCellarId owl:sameAs ?manifestationPublicId .
?manifestationCellarId cdm:manifestation_manifests_expression ?expressionCellarId .
OPTIONAL { ?manifestationCellarId cdm:manifestation_type ?manifestationType . }
# item is resolved to the phisical file directly
#?itemCellarId owl:sameAs ?itemPublicId .
?itemCellarId cdm:item_belongs_to_manifestation ?manifestationCellarId .
OPTIONAL { ?itemCellarId cmr:manifestationMimeType ?mimeType . }
avg(some average)
bind(if(true, 'ssd',5454)) as ?newVariable
}
limit 1000
\end{lstlisting}
\subsection{Functional-Style syntax}
\begin{lstlisting}[language=Functional-style]
Prefix(:=<http://example.com/owl/families/>)
Prefix(otherOnt:=<http://example.org/otherOntologies/families/>)
Prefix(xsd:=<http://www.w3.org/2001/XMLSchema#>)
Prefix(owl:=<http://www.w3.org/2002/07/owl#>)
Ontology(<http://example.com/owl/families>
Import( <http://example.org/otherOntologies/families.owl> )
Declaration( NamedIndividual( :John ) )
Declaration( NamedIndividual( :Mary ) )
Declaration( NamedIndividual( :Jim ) )
Declaration( NamedIndividual( :James ) )
Declaration( NamedIndividual( :Jack ) )
Declaration( NamedIndividual( :Bill ) )
Declaration( NamedIndividual( :Susan ) )
Declaration( Class( :Person ) )
AnnotationAssertion( rdfs:comment :Person "Represents the set of all people." )
Declaration( Class( :Woman ) )
Declaration( Class( :Parent ) )
Declaration( Class( :Father ) )
Declaration( Class( :Mother ) )
Declaration( Class( :SocialRole ) )
Declaration( Class( :Man ) )
Declaration( Class( :Teenager ) )
Declaration( Class( :ChildlessPerson ) )
Declaration( Class( :Human ) )
Declaration( Class( :Female ) )
Declaration( Class( :HappyPerson ) )
Declaration( Class( :JohnsChildren ) )
Declaration( Class( :NarcisticPerson ) )
Declaration( Class( :MyBirthdayGuests ) )
Declaration( Class( :Dead ) )
Declaration( Class( :Orphan ) )
Declaration( Class( :Adult ) )
Declaration( Class( :YoungChild ) )
Declaration( ObjectProperty( :hasWife ) )
Declaration( ObjectProperty( :hasChild ) )
Declaration( ObjectProperty( :hasDaughter ) )
Declaration( ObjectProperty( :loves ) )
Declaration( ObjectProperty( :hasSpouse ) )
Declaration( ObjectProperty( :hasGrandparent ) )
Declaration( ObjectProperty( :hasParent ) )
Declaration( ObjectProperty( :hasBrother ) )
Declaration( ObjectProperty( :hasUncle ) )
Declaration( ObjectProperty( :hasSon ) )
Declaration( ObjectProperty( :hasAncestor ) )
Declaration( ObjectProperty( :hasHusband ) )
Declaration( DataProperty( :hasAge ) )
Declaration( DataProperty( :hasSSN ) )
Declaration( Datatype( :personAge ) )
Declaration( Datatype( :minorAge ) )
Declaration( Datatype( :majorAge ) )
Declaration( Datatype( :toddlerAge ) )
SubObjectPropertyOf( :hasWife :hasSpouse )
SubObjectPropertyOf(
ObjectPropertyChain( :hasParent :hasParent )
:hasGrandparent
)
SubObjectPropertyOf(
ObjectPropertyChain( :hasFather :hasBrother )
:hasUncle
)
SubObjectPropertyOf(
:hasFather
:hasParent
)
EquivalentObjectProperties( :hasChild otherOnt:child )
InverseObjectProperties( :hasParent :hasChild )
EquivalentDataProperties( :hasAge otherOnt:age )
DisjointObjectProperties( :hasSon :hasDaughter )
ObjectPropertyDomain( :hasWife :Man )
ObjectPropertyRange( :hasWife :Woman )
DataPropertyDomain( :hasAge :Person )
DataPropertyRange( :hasAge xsd:nonNegativeInteger )
SymmetricObjectProperty( :hasSpouse )
AsymmetricObjectProperty( :hasChild )
DisjointObjectProperties( :hasParent :hasSpouse )
ReflexiveObjectProperty( :hasRelative )
IrreflexiveObjectProperty( :parentOf )
FunctionalObjectProperty( :hasHusband )
InverseFunctionalObjectProperty( :hasHusband )
TransitiveObjectProperty( :hasAncestor )
FunctionalDataProperty( :hasAge )
SubClassOf( :Woman :Person )
SubClassOf( :Mother :Woman )
SubClassOf(
:Grandfather
ObjectIntersectionOf( :Man :Parent )
)
SubClassOf( :Teenager
DataSomeValuesFrom( :hasAge
DatatypeRestriction( xsd:integer
xsd:minExclusive "12"^^xsd:integer
xsd:maxInclusive "19"^^xsd:integer
)
)
)
SubClassOf(
Annotation( rdfs:comment "States that every man is a person." )
:Man
:Person
)
SubClassOf(
:Father
ObjectIntersectionOf( :Man :Parent )
)
SubClassOf(
:ChildlessPerson
ObjectIntersectionOf(
:Person
ObjectComplementOf(
ObjectSomeValuesFrom(
ObjectInverseOf( :hasParent )
owl:Thing
)
)
)
)
SubClassOf(
ObjectIntersectionOf(
ObjectOneOf( :Mary :Bill :Meg )
:Female
)
ObjectIntersectionOf(
:Parent
ObjectMaxCardinality( 1 :hasChild )
ObjectAllValuesFrom( :hasChild :Female )
)
)
EquivalentClasses( :Person :Human )
EquivalentClasses(
:Mother
ObjectIntersectionOf( :Woman :Parent )
)
EquivalentClasses(
:Parent
ObjectUnionOf( :Mother :Father )
)
EquivalentClasses(
:ChildlessPerson
ObjectIntersectionOf(
:Person
ObjectComplementOf( :Parent )
)
)
EquivalentClasses(
:Parent
ObjectSomeValuesFrom( :hasChild :Person )
)
EquivalentClasses(
:HappyPerson
ObjectIntersectionOf(
ObjectAllValuesFrom( :hasChild :HappyPerson )
ObjectSomeValuesFrom( :hasChild :HappyPerson )
)
)
EquivalentClasses(
:JohnsChildren
ObjectHasValue( :hasParent :John )
)
EquivalentClasses(
:NarcisticPerson
ObjectHasSelf( :loves )
)
EquivalentClasses(
:MyBirthdayGuests
ObjectOneOf( :Bill :John :Mary)
)
EquivalentClasses(
:Orphan
ObjectAllValuesFrom(
ObjectInverseOf( :hasChild )
:Dead
)
)
EquivalentClasses( :Adult otherOnt:Grownup )
EquivalentClasses(
:Parent
ObjectSomeValuesFrom(
:hasChild
:Person
)
)
DisjointClasses( :Woman :Man )
DisjointClasses(
:Mother
:Father
:YoungChild
)
HasKey( :Person () ( :hasSSN ) )
DatatypeDefinition(
:personAge
DatatypeRestriction( xsd:integer
xsd:minInclusive "0"^^xsd:integer
xsd:maxInclusive "150"^^xsd:integer
)
)
DatatypeDefinition(
:minorAge
DatatypeRestriction( xsd:integer
xsd:minInclusive "0"^^xsd:integer
xsd:maxInclusive "18"^^xsd:integer
)
)
DatatypeDefinition(
:majorAge
DataIntersectionOf(
:personAge
DataComplementOf( :minorAge )
)
)
DatatypeDefinition(
:toddlerAge
DataOneOf( "1"^^xsd:integer "2"^^xsd:integer )
)
ClassAssertion( :Person :Mary )
ClassAssertion( :Woman :Mary )
ClassAssertion(
ObjectIntersectionOf(
:Person
ObjectComplementOf( :Parent )
)
:Jack
)
ClassAssertion(
ObjectMaxCardinality( 4 :hasChild :Parent )
:John
)
ClassAssertion(
ObjectMinCardinality( 2 :hasChild :Parent )
:John
)
ClassAssertion(
ObjectExactCardinality( 3 :hasChild :Parent )
:John
)
ClassAssertion(
ObjectExactCardinality( 5 :hasChild )
:John
)
ClassAssertion( :Father :John )
ClassAssertion( :SocialRole :Father )
ObjectPropertyAssertion( :hasWife :John :Mary )
NegativeObjectPropertyAssertion( :hasWife :Bill :Mary )
NegativeObjectPropertyAssertion(
:hasDaughter
:Bill
:Susan
)
DataPropertyAssertion( :hasAge :John "51"^^xsd:integer )
NegativeDataPropertyAssertion( :hasAge :Jack "53"^^xsd:integer )
SameIndividual( :James :Jim )
SameIndividual( :John otherOnt:JohnBrown )
SameIndividual( :Mary otherOnt:MaryBrown )
DifferentIndividuals( :John :Bill )
)
\end{lstlisting}
\subsection{Manchester syntax}
\begin{lstlisting}[language=Manchester-syntax]
Ontology: <http://example.com/owl/families>
AnnotationProperty: rdfs:comment
Datatype: personAge
EquivalentTo:
xsd:integer[>= 0 , <= 150]
Datatype: rdf:PlainLiteral
Datatype: toddlerAge
EquivalentTo:
{1 , 2}
Datatype: xsd:nonNegativeInteger
Datatype: minorAge
Datatype: majorAge
EquivalentTo:
(personAge and not minorAge)
Datatype: xsd:integer
ObjectProperty: hasBrother
ObjectProperty: hasRelative
Characteristics:
Reflexive
ObjectProperty: otherOnt:child
EquivalentTo:
hasChild
ObjectProperty: parentOf
Characteristics:
Irreflexive
ObjectProperty: hasSon
DisjointWith:
hasDaughter
ObjectProperty: hasWife
SubPropertyOf:
hasSpouse
Domain:
Man
Range:
Woman
ObjectProperty: hasHusband
Characteristics:
InverseFunctional,
Functional
ObjectProperty: hasParent
DisjointWith:
hasSpouse
InverseOf:
hasChild
ObjectProperty: hasUncle
SubPropertyChain:
hasFather o hasBrother
ObjectProperty: hasGrandparent
SubPropertyChain:
hasParent o hasParent
ObjectProperty: hasFather
SubPropertyOf:
hasParent
ObjectProperty: hasDaughter
DisjointWith:
hasSon
ObjectProperty: hasSpouse
DisjointWith:
hasParent
Characteristics:
Symmetric
ObjectProperty: hasAncestor
Characteristics:
Transitive
ObjectProperty: hasChild
EquivalentTo:
otherOnt:child
Characteristics:
Asymmetric
InverseOf:
hasParent
ObjectProperty: loves
DataProperty: otherOnt:age
EquivalentTo:
hasAge
DataProperty: hasAge
Characteristics:
Functional
Domain:
Person
Range:
xsd:nonNegativeInteger
EquivalentTo:
otherOnt:age
DataProperty: hasSSN
Class: OWL:Thing
Class: Father
SubClassOf:
Man
and Parent
Class: Mother
EquivalentTo:
Parent
and Woman
SubClassOf:
Woman
Class: Human
EquivalentTo:
Person
Class: YoungChild
Class: Dead
Class: Grandfather
SubClassOf:
Man
and Parent
Class: Person
Annotations:
rdfs:comment "Represents the set of all people."
EquivalentTo:
Human
HasKey:
hasSSN
Class: MyBirthdayGuests
EquivalentTo:
{Bill , John , Mary}
Class: Adult
EquivalentTo:
otherOnt:Grownup
Class: SocialRole
Class: HappyPerson
EquivalentTo:
(hasChild some HappyPerson)
and (hasChild only HappyPerson)
Class: Parent
EquivalentTo:
(Father or Mother),
hasChild some Person
Class: Teenager
SubClassOf:
hasAge some xsd:integer[> 12 , <= 19]
Class: Orphan
EquivalentTo:
inverse (hasChild) only Dead
Class: NarcisticPerson
EquivalentTo:
loves some Self
Class: ChildlessPerson
EquivalentTo:
Person
and (not (Parent))
SubClassOf:
Person
and (not ( inverse (hasParent) some OWL:Thing))
Class: Woman
SubClassOf:
Person
DisjointWith:
Man
Class: JohnsChildren
EquivalentTo:
hasParent value John
Class: otherOnt:Grownup
EquivalentTo:
Adult
Class: Female
Class: Man
Annotations: rdfs:comment "States that every man is a person."
SubClassOf:
Person
DisjointWith:
Woman
Individual: Mary
Types:
Person,
Woman
SameAs:
otherOnt:MaryBrown
Individual: John
Types:
Father,
hasChild exactly 5 OWL:Thing,
hasChild max 4 Parent,
hasChild exactly 3 Parent,
hasChild min 2 Parent
Facts:
hasWife Mary,
hasAge 51
SameAs:
Jack,
otherOnt:JohnBrown
DifferentFrom:
Bill
Individual: Jim
Individual: otherOnt:JohnBrown
SameAs:
John
Individual: otherOnt:MaryBrown
SameAs:
Mary
Individual: James
Individual: Susan
Individual: Bill
Facts:
not hasWife Mary,
not hasDaughter Susan
DifferentFrom:
John
Individual: Father
Types:
SocialRole
Individual: Jack
Types:
Person
and (not (Parent))
Facts:
not hasAge 53
SameAs:
John
Individual: Meg
DisjointClasses:
Father,Mother,YoungChild
\end{lstlisting}
% \begin{lstlisting}[language=OWL-Manchester]
%Prefix: : <http://ex.com/owl/families#>
%Prefix: g: <http://ex.com/owl2/families#>
%
%Ontology: <http://example.com/owl/families> <http://example.com/owl/families-v1>
%Import: <http://ex.com/owl2/families.owl>
%Annotations: creator John,
% Annotations: rdfs:comment "Creation Year"
% creationYear 2008,
% mainClass Person
%
%ObjectProperty: hasWife
% Annotations: ...
% Characteristics: Functional, InverseFunctional, Reflexive, Irreflexive, Asymmetric, Transitive
% Domain: Annotations: rdfs:comment "General domain",
% creator John
% Person,
% Annotations: rdfs:comment "More specific domain"
% Man
% Range: Person, Woman
% SubPropertyOf: hasSpouse, loves
% EquivalentTo: isMarriedTo ,...
% DisjointWith: hates ,...
% InverseOf: hasSpouse, inverse hasSpouse
% SubPropertyChain: Annotations: ... hasChild o hasParent o...
%
%DataProperty: hasAge
% Annotations: ...
% Characteristics: Functional
% Domain: Person ,...
% Range: integer ,...
% SubPropertyOf: hasVerifiedAge ,...
% EquivalentTo: hasAgeInYears ,...
% DisjointWith: hasSSN ,...
%
%AnnotationProperty: creator
% Annotations: ...
% Domain: Person ,...
% Range: integer ,...
% SubPropertyOf: initialCreator ,...
%
%Datatype: NegInt
% Annotations: ...
% EquivalentTo: integer[< 0]
%
%Class: Person
% Annotations: ...
% SubClassOf: owl:Thing that hasFirstName exactly 1 and hasFirstName only string[minLength 1] ,...
% SubClassOf: hasAge exactly 1 and hasAge only not NegInt,...
% SubClassOf: hasGender exactly 1 and hasGender only {female , male} ,...
% SubClassOf: hasSSN max 1, hasSSN min 1
% SubClassOf: not hates Self, ...
% EquivalentTo: g:People ,...
% DisjointWith: g:Rock , g:Mineral ,...
% DisjointUnionOf: Annotations: ... Child, Adult
% HasKey: Annotations: ... hasSSN
%
%Individual: John
% Annotations: ...
% Types: Person , hasFirstName value "John" or hasFirstName value "Jack"^^xsd:string
% Facts: hasWife Mary, not hasChild Susan, hasAge 33, hasChild _:child1
% SameAs: Jack ,...
% DifferentFrom: Susan ,...
%
%Individual: _:child1
% Annotations: ...
% Types: Person ,...
% Facts: hasChild Susan ,...
%
%DisjointClasses: Annotations: ... g:Rock, g:Scissor, g:Paper
%EquivalentProperties: Annotations: ... hates, loathes, despises
%DisjointProperties: Annotations: ... hates, loves, indifferent
%EquivalentProperties: Annotations: ... favoriteNumber, g:favouriteNumber, g:favouriteInteger
%DisjointProperties: Annotations: ... favoriteInteger, favouriteReal
%SameIndividual: Annotations: ... John, Jack, Joe, Jim
%DifferentIndividuals: Annotations: ... John, Susan, Mary, Jill
% \end{lstlisting}
\subsection{Turtle}
\begin{lstlisting}[language=Turtle]
@prefix : <http://example.com/owl/families/> .
@prefix owl: <http://www.w3.org/2002/07/owl#> .
@prefix xml: <http://www.w3.org/XML/1998/namespace> .
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .
<http://example.com/owl/families> rdf:type OWL:Ontology .
:majorAge rdf:type rdfs:Datatype ;
OWL:equivalentClass [
rdf:type rdfs:Datatype ;
OWL:intersectionOf (
:personAge
[ rdf:type rdfs:Datatype ;
OWL:datatypeComplementOf :minorAge]
)
] .
:minorAge rdf:type rdfs:Datatype .
:personAge rdf:type rdfs:Datatype ;
OWL:equivalentClass [
rdf:type rdfs:Datatype ;
OWL:onDatatype xs:integer ;
OWL:withRestrictions (
[ xs:maxInclusive 150 ]
[ xs:minInclusive 0] )
] .
:toddlerAge rdf:type rdfs:Datatype ;
OWL:equivalentClass [
rdf:type rdfs:Datatype ;
OWL:oneOf [
rdf:type rdf:List ;
rdf:first 1 ;
rdf:rest [ rdf:type rdf:List ;
rdf:first 2 ;
rdf:rest rdf:nil
]
]
] .
:hasAncestor rdf:type OWL:ObjectProperty ,
OWL:TransitiveProperty .
:hasBrother rdf:type OWL:ObjectProperty .
:hasChild rdf:type OWL:AsymmetricProperty ,
OWL:ObjectProperty ;
OWL:equivalentProperty otherOnt:child .
:hasDaughter rdf:type OWL:ObjectProperty ;
OWL:propertyDisjointWith :hasSon .
:hasFather rdf:type OWL:ObjectProperty ;
rdfs:subPropertyOf :hasParent .
:hasGrandparent rdf:type OWL:ObjectProperty ;
OWL:propertyChainAxiom ( :hasParent
:hasParent
) .
:hasHusband rdf:type OWL:FunctionalProperty ,
OWL:InverseFunctionalProperty ,
OWL:ObjectProperty .
:hasParent rdf:type OWL:ObjectProperty ;
OWL:inverseOf :hasChild ;
OWL:propertyDisjointWith :hasSpouse .
:hasRelative rdf:type OWL:ObjectProperty ,
OWL:ReflexiveProperty .
:hasSon rdf:type OWL:ObjectProperty .
:hasSpouse rdf:type OWL:ObjectProperty ,
OWL:SymmetricProperty .
:hasUncle rdf:type OWL:ObjectProperty ;
OWL:propertyChainAxiom ( :hasFather
:hasBrother
) .
:hasWife rdf:type OWL:ObjectProperty ;
rdfs:domain :Man ;
rdfs:range :Woman ;
rdfs:subPropertyOf :hasSpouse .
:loves rdf:type OWL:ObjectProperty .
:parentOf rdf:type OWL:IrreflexiveProperty ,
OWL:ObjectProperty .
otherOnt:child rdf:type OWL:ObjectProperty .
:hasAge rdf:type OWL:DatatypeProperty ,
OWL:FunctionalProperty ;
rdfs:domain :Person ;
OWL:equivalentProperty otherOnt:age ;
rdfs:range xs:nonNegativeInteger .
:hasSSN rdf:type OWL:DatatypeProperty .
otherOnt:age rdf:type OWL:DatatypeProperty .
:Adult rdf:type OWL:Class ;
OWL:equivalentClass otherOnt:Grownup .
:ChildlessPerson rdf:type OWL:Class ;
OWL:equivalentClass [ rdf:type OWL:Class ;
OWL:intersectionOf (
:Person
[ rdf:type OWL:Class ;
OWL:complementOf :Parent
]
)
] ;
rdfs:subClassOf [ rdf:type OWL:Class ;
OWL:intersectionOf (
:Person
[ rdf:type OWL:Class ;
OWL:complementOf [
rdf:type OWL:Restriction ;
OWL:onProperty [ OWL:inverseOf :hasParent
] ;
OWL:someValuesFrom OWL:Thing
]
]
)
] .
:Dead rdf:type OWL:Class .
:Father rdf:type OWL:Class ;
rdfs:subClassOf [
rdf:type OWL:Class ;
OWL:intersectionOf ( :Man
:Parent
)
] .
:Female rdf:type OWL:Class .
:Grandfather rdf:type OWL:Class ;
rdfs:subClassOf [
rdf:type OWL:Class ;
OWL:intersectionOf ( :Man :Parent )
] .
:HappyPerson rdf:type OWL:Class ;
OWL:equivalentClass [
rdf:type OWL:Class ;
OWL:intersectionOf (
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:someValuesFrom :HappyPerson
]
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:allValuesFrom :HappyPerson
]
)
] .
:Human rdf:type OWL:Class ;
OWL:equivalentClass :Person .
:JohnsChildren rdf:type OWL:Class ;
OWL:equivalentClass [
rdf:type OWL:Restriction ;
OWL:onProperty :hasParent ;
OWL:hasValue :John
] .
:Man rdf:type OWL:Class ;
rdfs:subClassOf :Person ;
OWL:disjointWith :Woman .
[ rdf:type OWL:Axiom ;
rdfs:comment "States that every man is a person." ;
OWL:annotatedSource :Man ;
OWL:annotatedTarget :Person ;
OWL:annotatedProperty rdfs:subClassOf
] .
:Mother rdf:type OWL:Class ;
OWL:equivalentClass [
rdf:type OWL:Class ;
OWL:intersectionOf ( :Parent :Woman )
] ;
rdfs:subClassOf :Woman .
:MyBirthdayGuests rdf:type OWL:Class ;
OWL:equivalentClass [
rdf:type OWL:Class ;
OWL:oneOf ( :John :Mary :Bill )
] .
:Person rdf:type OWL:Class ;
rdfs:comment "Represents the set of all people." ;
OWL:hasKey ( :hasSSN
) .
:Teenager rdf:type OWL:Class ;
rdfs:subClassOf [
rdf:type OWL:Restriction ;
OWL:onProperty :hasAge ;
OWL:someValuesFrom [
rdf:type rdfs:Datatype ;
OWL:onDatatype xs:integer ;
OWL:withRestrictions (
[ xs:maxInclusive 19 ]
[ xs:minExclusive 12 ]
)
]
] .
:Woman rdf:type OWL:Class ;
rdfs:subClassOf :Person .
:Bill rdf:type OWL:NamedIndividual .
[ rdf:type OWL:NegativePropertyAssertion ;
OWL:sourceIndividual :Bill ;
OWL:targetIndividual :Mary ;
OWL:assertionProperty :hasWife
] .
[ rdf:type OWL:NegativePropertyAssertion ;
OWL:sourceIndividual :Bill ;
OWL:targetIndividual :Susan ;
OWL:assertionProperty :hasDaughter
] .
:Father rdf:type :SocialRole ,
OWL:NamedIndividual .
:Jack rdf:type OWL:NamedIndividual ,
[ rdf:type OWL:Class ;
OWL:intersectionOf (
:Person
[ rdf:type OWL:Class ;
OWL:complementOf :Parent
]
)
] ;
OWL:sameAs :John .
[ rdf:type OWL:NegativePropertyAssertion ;
OWL:targetValue 53 ;
OWL:sourceIndividual :Jack ;
OWL:assertionProperty :hasAge
] .
:James rdf:type OWL:NamedIndividual .
:Jim rdf:type OWL:NamedIndividual .
:John rdf:type :Father ,
OWL:NamedIndividual ,
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:onClass :Parent ;
OWL:qualifiedCardinality "3"^^xs:nonNegativeInteger
] ,
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:cardinality "5"^^xs:nonNegativeInteger
] ,
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:onClass :Parent ;
OWL:minQualifiedCardinality "2"^^xs:nonNegativeInteger
] ,
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:onClass :Parent ;
OWL:maxQualifiedCardinality "4"^^xs:nonNegativeInteger
] ;
:hasAge 51 ;
:hasWife :Mary ;
OWL:sameAs otherOnt:JohnBrown .
:Mary rdf:type :Person , :Woman , OWL:NamedIndividual ;
OWL:sameAs otherOnt:MaryBrown .
:Meg rdf:type OWL:NamedIndividual .
:Susan rdf:type OWL:NamedIndividual .
otherOnt:JohnBrown rdf:type OWL:NamedIndividual .
otherOnt:MaryBrown rdf:type OWL:NamedIndividual .
[ rdf:type OWL:AllDifferent ;
OWL:distinctMembers ( :Bill
:John
)
] .
[ rdf:type OWL:Class ;
rdfs:subClassOf [
rdf:type OWL:Class ;
OWL:intersectionOf (
:Parent
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:allValuesFrom :Female
]
[ rdf:type OWL:Restriction ;
OWL:onProperty :hasChild ;
OWL:maxCardinality "1"^^xs:nonNegativeInteger
]
)
] ;
OWL:intersectionOf (
:Female
[ rdf:type OWL:Class ;
OWL:oneOf ( :Mary :Bill :Meg )
]
)
] .
[ rdf:type OWL:AllDisjointClasses ;
OWL:members ( :Father
:Mother
:YoungChild
)
] .
\end{lstlisting}
\end{document}Preview
PDF Preview
Create an account to compile and preview
